WPEB-265AXI(BT) [B33]/[R33]

  • Chipset: Broadcom
  • Antenna: 2 x IPEX MHF1 connectors, 2T2R
  • Interface: WLAN: PCIe
  • Output Power up to 18.5dBm
  • Support: Linux, Android

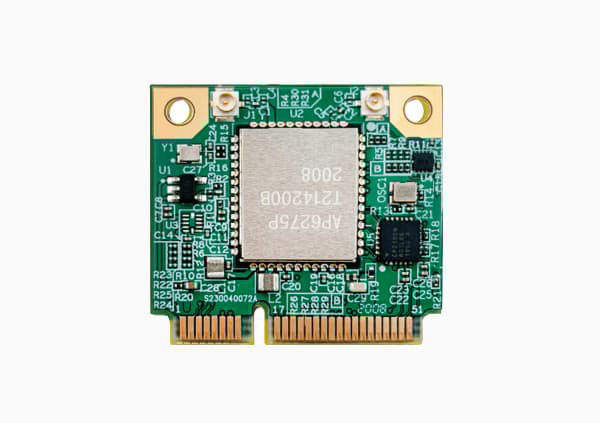

802.11ax/ac/a/b/g/n Industrial Grade, WiFi Combo, Half mini PCIe Module(WiFi 6), 2T2R

Product Overview

WPEB-265AXI(BT) series is a WLAN 802.11ax (WiFi 6) Combo Module, 802.11ax (WiFi 6) allow efficient allocation of low data-rate connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. The new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT). WPEB-265AXI(BT) series enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router and in dense environments.

There are two basic types of WPEB-265AXI(BT) Series models, one is USB interface for BT the other is UART interface for BT. The Operating Voltage support DC 3.3V. The 802.11ax (WiFi 6) half mini PCIe module can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity when simultaneously servicing multiple devices using the same frequency chunks. BT 5 provides doubles data rates speed for faster transmissions thereby reducing the overall power consumption. Additionally, BT 5 adds new enhanced data broadcasting enabling seamless services.

WPEB-265AXI(BT) module can support the Soft AP mode and Station (Client) mode. the product can be connected to a wireless network as a Client, while also creating a separate network as an AP for other devices to connect to it.


Suitable Application


Industrial PC

In Vehicle PC

In Vehicle Router

Outdoor IPTV

Vehicle mounted front

Rear Terminal UAV

Robot

Intelligent Gateway


Multiple Variations available


WPEB-265AXI(BT) is designed with multiple product skus to fit is all platforms. Here are all the skus for the module:

Sku Part NameSpecification
WPEB-265AXI(BT) [B33]WLAN: PCIe, BT: USB, DC 3.3V, -40°C~85°C
WPEB-265AXI(BT) [R33]WLAN: PCIe, BT: UART, DC 3.3V, -40°C~85°C



Specification


STANDARD
WI-FIIEEE 802.11ax/ac/a/b/g/n
ChipsetBroadcom
Host InterfaceWLAN : PCIe
RADIO
Antenna2 x IPEX MHF1 connectors
Operating Frequency802.11ax/ac/a/b/g/n ISM Band
2.412GHz~2.4835GHz

5.150GHz~5.850GHz

*Subject to local regulations

MODULATIONS
802.11bDSSS (DBPSK, DQPSK, CCK)
802.11gOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11nOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11aOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11acOFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11axOFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM，1024-QAM)
POWER & SENSITIVITY
WiFiPower – TX (± 2dBm)
Sensitivity – RX
11b @11Mbps18.5dBm≤ -88dBm
11g @ 54Mbps12dBm≤ -77dBm
11gn HT20 @ MCS 712dBm≤ -75dBm
11a @ 54Mbps14.5dBm≤ -76dBm
11an HT20 @ MCS 713.5dBm≤ -73dBm
11an HT40 @ MCS 711dBm≤ -70dBm
11ac VHT80 @ MCS 99dBm≤ -57dBm
11ax HE20 @ HE713.5dBm≤-69dBm
11ax HE40 @ HE711dBm≤-68dBm
11ax HE80 @ HE99dBm≤-60dBm
POWER CONSUMPTION
Continue TX937mA
Continue RX94mA
ENVIRONMENTAL
Operating VoltageDC 3.3V
Temperature Range-40 ~ 85°C (Operating)
-40 ~ 105°C (Storing)
Humidity(Non-Condensing)10 ~ 95% (Operating)
10 ~ 95% (Storing)
SIZE
Dimension (MM)29.85mm(±0.15mm) x 26.65mm(±0.15mm) x 2.5mm(±0.2mm)
Weight≦4g
SOFTWARE
DriverLinux
Android
Security64/128-bits WEP, WPA, WPA2, WPA3, 802.1x
Miscellaneous
Warranty Period12 Month
HS Code8517620050
