WNFQ-290BE WIFI7模块

2024-07-19 16:21 勤诺智能

文章载入中...

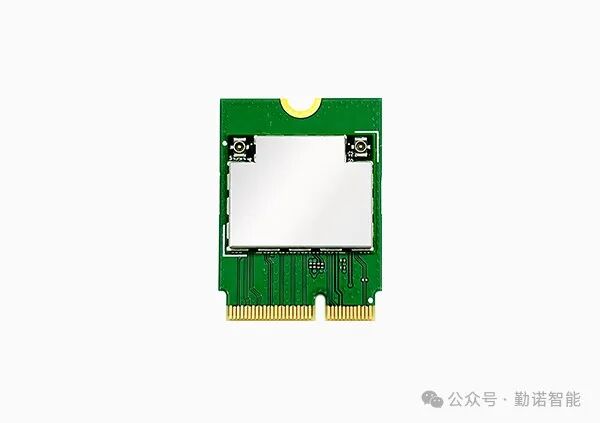

WNSQ-290BE

芯片组:高通QCC2073
Chipset: Qualcomm QCC2073

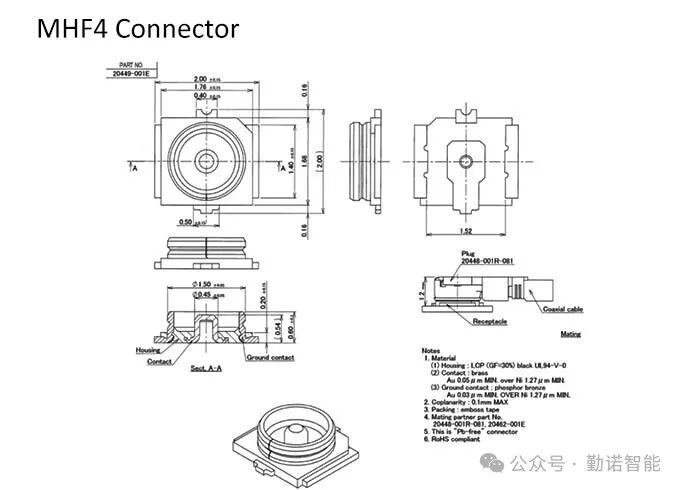

天线:2个IPEX MHF4连接器，2T2R
Antenna: 2 x IPEX MHF4 connectors, 2T2R
接口类型:PCIe: WLAN
Interface: PCIe: WLAN
支持:Linux(开源)
Support: Linux (Open Source)

产品概述

WNFQ-290BE，第一款基于高通的Wifi -7 (802.11be)模块，采用m . 22230e关键规格，运行PCIe (Wifi)和USB，具有三频段功能(2.4GHz, 5GHz和6GHz)。WNFQ-290BE支持2.4GHz、5GHz、6GHz单频段工作，支持IEEE802.11 be/ax/ac/a/b/g/n协议，最高160MHz模式。

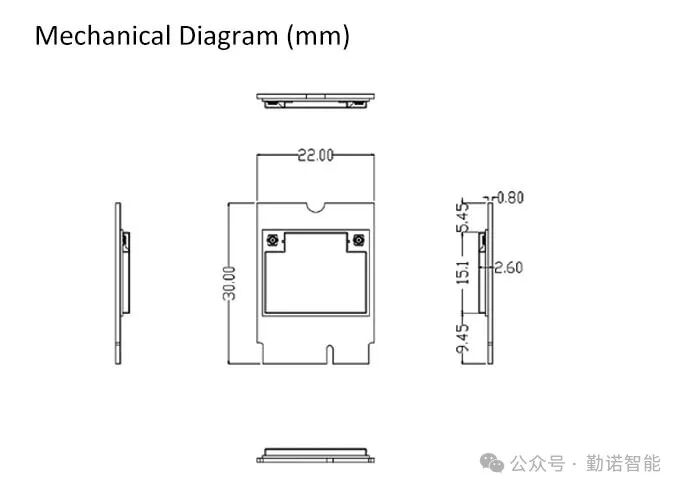

WNFQ-290BE在MU-MIMO模式下设计了2个空间流(2T2R，或2×2)。WNFQ-290BE采用标准的M.2 E密钥2230规格，可以适应所有预先集成了M.2适配器的现有平台，无需额外的平台设计工作。

软件方面，WNFQ-290BE在不久的将来支持Linux(开源)。

该模块可在x86平台和基于ARM的平台上运行，并支持STA模式和Soft AP模式*，建议运行在应用包括:数字标牌/POS，坚固型计算机/平板电脑，无风扇自动化PC和其他需要高速数据传输的工业环境应用。

Product Overview

WNFQ-290BE, first Qualcomm based WiFi-7 (802.11be) module in M.2 2230 E key formfactor, running PCIe (Wifi) and USB, with Tri-band capability (2.4GHz, 5GHz, and 6GHz). WNFQ-290BE supports single band operation on 2.4GHz with 5GHz, or 6GHz, and support IEEE802.11 be/ax/ac/a/b/g/n protocol, up to 160MHz mode.

WNFQ-290BE designed with 2 spatial streams (2T2R, or 2×2) in MU-MIMO mode. With a standard M.2 E key 2230 formfactor, WNFQ-290BE can accommodate to all existing platform that has M.2 Adaptor pre-integrated, no extra work with platform design.

Software wise WNFQ-290BE support Linux (Open Source) in the near future. The module is capable to run on both x86 platform and ARM based platform, and supports STA mode and Soft AP Mode*, recommend to run on application includes: digital signage/POS, rugged computer / tablets, fanless automation PC and other industrial environment applications that requires high speed data transmission.

合适的应用

应用范围:IPC/广告机/ OTT/ IPTV/ DVB/机顶盒/ DV/迷你行车记录仪/智能投影仪Pico/ VR/ AR终端/ POS机/车载前/后终端无人机/机器人/智能网关/智慧城市等电子产品。

Suitable Application

Applications include IPC/ Advertising machine/ OTT/ IPTV/ DVB/ STB / DV/ Mini Driving Recorder/ Intelligent Projector Pico/ VR/ AR terminal/ POS machine/ Vehicle mounted front/ Rear Terminal UAV/ Robot/ Intelligent Gateway/ Smart city and other electronic products.
