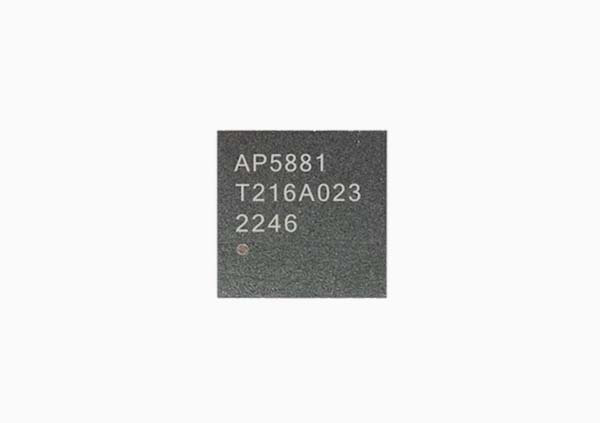

AP5881
Product Overview
AP5881 is a fully Wi-Fi 6E functionalities module with seamless roaming capabilities and advance security, also it can associate with different vendors’ Wi-Fi 6E or legacy Access Points / Routers and run up to PHY rate of 600Mbps with single stream. Furthermore AP5881 included PCIe3.0 Gen2 and SDIO v3.0 and USB v2.0 alternative interface for Wi-Fi.
In addition, this compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for tablet, OTT box and portable & mobile devices.
Suitable Application
This module is a total solution for a combination of 11ax WiFi 6 technologies. The module is specifically developed for tablets, OTT boxes, and portable devices, thin client devices, Gaming machines, etc.
Certifications
Environmental Compliance
|
| ||||
ROHS | Reach |
Specification
STANDARD | ||
WI-FI | IEEE 802.11ax/ac/a/b/g/n WiFi Module | |
Chipset | Synaptics | |
Host Interface | WiFi: SDIO V3.0/2.0 and PCIe 3.0 Gen2 and USB2.0 | |
RADIO | |
Antenna | External |
Operating Frequency | 2.4GHz ISM Band |
2.400GHz~2.4835GHz
5/6GHz UNII Band 5.15~5.35GHz、5.47~5.725GHz、5.725~5.85GHz、5.955~6.415GHz *Subject to local regulations* | |
MODULATIONS | ||
802.11b | DSSS (DBPSK, DQPSK, CCK) | |
802.11g/n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) | |
802.11ax | OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) | |
ENVIRONMENTAL | ||
Temperature Range | -30~ 85°C (Operating) | -40 ~ 125°C (Storing) |
Humidity (Non-Condensing) | 10 ~ 95% (Operating) | |
SIZE | |

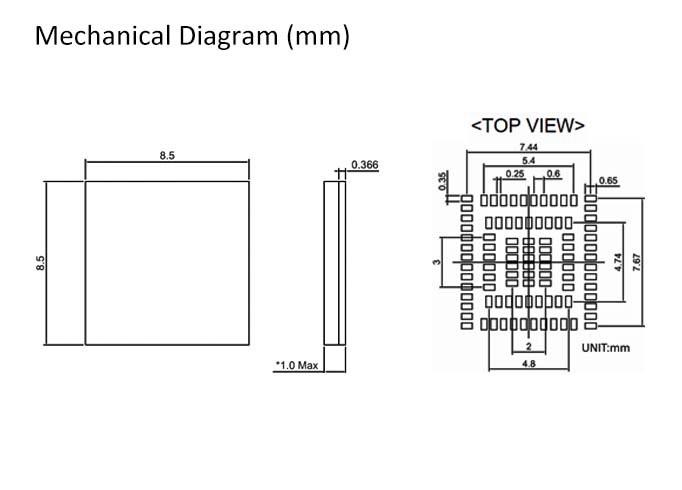

Dimension (MM) | 8.5 x 8.5 (typical) mm x 1.0mm(Max.) |
Weight | 0.40g |
SOFTWARE | |
Driver | Linux, Android |
Security | |
Miscellaneous | |
Warranty Period | 12 Month |
HS Code | 8517620050 |
