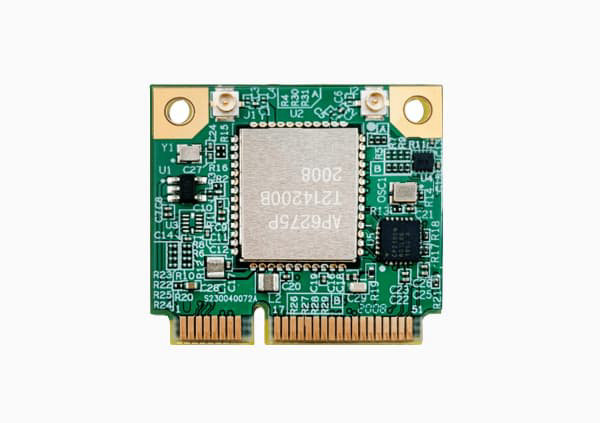

Product Overview
WPEB-265AXI(BT) series is a WLAN 802.11ax (WiFi 6) Combo Module, 802.11ax (WiFi 6) allow efficient allocation of low data-rate connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. The new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT). WPEB-265AXI(BT) series enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router and in dense environments.
There are two basic types of WPEB-265AXI(BT) Series models, one is USB interface for BT the other is UART interface for BT. The Operating Voltage support DC 3.3V. The 802.11ax (WiFi 6) half mini PCIe module can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity when simultaneously servicing multiple devices using the same frequency chunks. BT 5 provides doubles data rates speed for faster transmissions thereby reducing the overall power consumption. Additionally, BT 5 adds new enhanced data broadcasting enabling seamless services.
WPEB-265AXI(BT) module can support the Soft AP mode and Station (Client) mode. the product can be connected to a wireless network as a Client, while also creating a separate network as an AP for other devices to connect to it.
Suitable Application
Industrial PC | In Vehicle PC |
In Vehicle Router | Outdoor IPTV |
Vehicle mounted front | Rear Terminal UAV |
Robot | Intelligent Gateway |
Multiple Variations available
WPEB-265AXI(BT) is designed with multiple product skus to fit is all platforms. Here are all the skus for the module:
Sku Part Name | Specification | |
WPEB-265AXI(BT) [B33] | WLAN: PCIe, BT: USB, DC 3.3V, -40°C~85°C | |

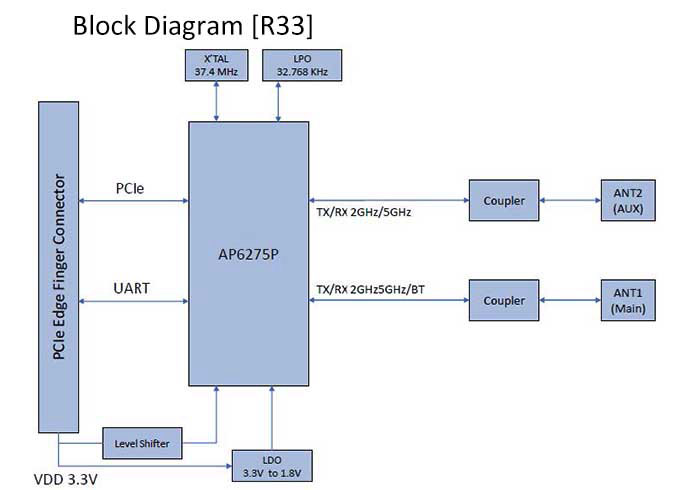

WPEB-265AXI(BT) [R33] | WLAN: PCIe, BT: UART, DC 3.3V, -40°C~85°C | |
Specification
STANDARD | |
WI-FI | IEEE 802.11ax/ac/a/b/g/n |
Chipset | Broadcom |
Host Interface | WLAN : PCIe |
RADIO | |
Antenna | 2 x IPEX MHF1 connectors |
Operating Frequency | 802.11ax/ac/a/b/g/n ISM Band |
2.412GHz~2.4835GHz 5.150GHz~5.850GHz *Subject to local regulations | |
MODULATIONS | |
802.11b | DSSS (DBPSK, DQPSK, CCK) |
802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
802.11ax | OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM，1024-QAM) |
POWER & SENSITIVITY | ||
WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
11b @11Mbps | 18.5dBm | ≤ -88dBm |
11g @ 54Mbps | 12dBm | ≤ -77dBm |
11gn HT20 @ MCS 7 | 12dBm | ≤ -75dBm |
11a @ 54Mbps | 14.5dBm | ≤ -76dBm |
11an HT20 @ MCS 7 | 13.5dBm | ≤ -73dBm |
11an HT40 @ MCS 7 | 11dBm | ≤ -70dBm |
11ac VHT80 @ MCS 9 | 9dBm | ≤ -57dBm |
11ax HE20 @ HE7 | 13.5dBm | ≤-69dBm |
11ax HE40 @ HE7 | 11dBm | ≤-68dBm |
11ax HE80 @ HE9 | 9dBm | ≤-60dBm |
POWER CONSUMPTION | |
Continue TX | 937mA |
Continue RX | 94mA |
ENVIRONMENTAL | ||
Operating Voltage | DC 3.3V | |
Temperature Range | -40 ~ 85°C (Operating) | -40 ~ 105°C (Storing) |
Humidity(Non-Condensing) | 10 ~ 95% (Operating) | 10 ~ 95% (Storing) |
SIZE | |

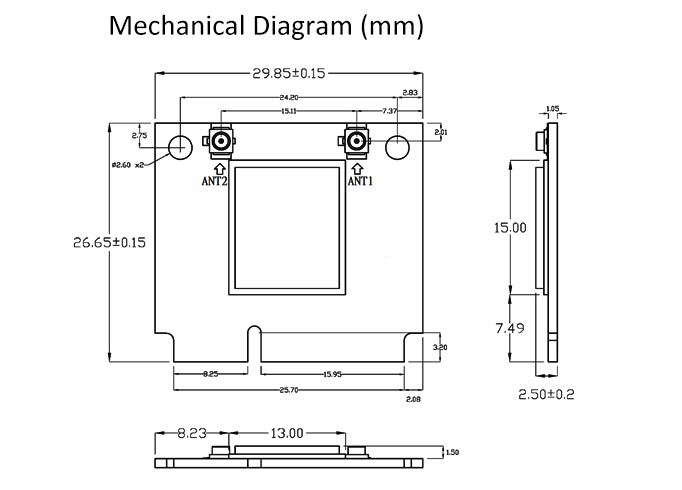

Dimension (MM) | 29.85mm(±0.15mm) x 26.65mm(±0.15mm) x 2.5mm(±0.2mm) |
Weight | ≦4g |
SOFTWARE | |
Driver | Linux |
Android | |
Security | 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x |
Miscellaneous | |
Warranty Period | 12 Month |
HS Code | 8517620050 |
