WNFB-266AXI(BT)
产品概述

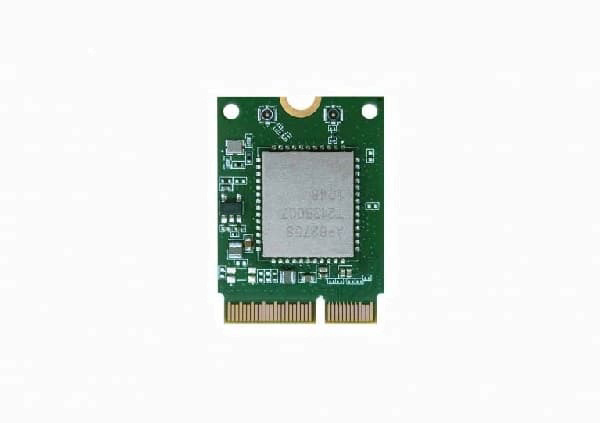

This is a WLAN 802.11ax (WiFi 6) SDIO M.2 2230 (KEY E) Module, 802.11ax WiFi 6 allow Increased capacity, faster speed, better coverage connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT), and spatial reuse, the WNFB-266AXI(BT) module enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router and in dense environments.
The Wi-Fi and BT 5.0 functionalities module with seamless roaming capabilities and advance security. The 802.11ax M.2 2230(KEY E) module can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity. Furthermore the included SDIO interface for Wi- Fi, UART/ PCM interface for BT.
WNFB-266AXI(BT) module can support the Soft AP mode and Station (Client) mode. The product can be connected to a wireless network as a Client, while also creating a separate network as an AP for other devices to connect to it.
适用应用
Applications include medical devices, security systems, industrial PC, Remote control, digital signs, STB, embedded / tablet PC’s, smart devices, Smart manufacturing, shop, Home, TV, etc.
参数特性
STANDARD | |
WI-FI | IEEE 802.11ax/ac/a/b/g/n |
Chipset | Broadcom |

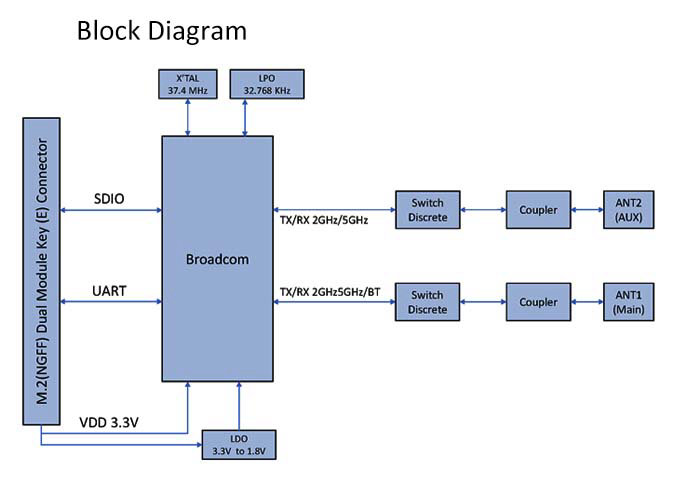

Host Interface | WLAN : SDIO |
RADIO | |

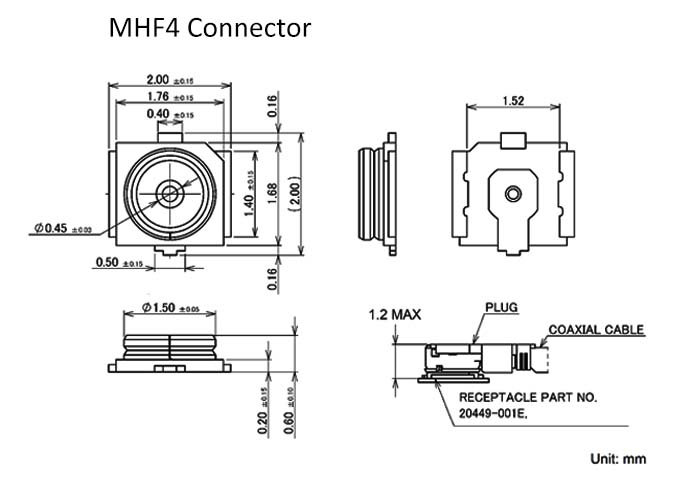

Antenna | 2 x IPEX MHF4 connectors |
Operating Frequency | 802.11ax/ac/a/b/g/n ISM Band |
2.400GHz~2.4835GHz 5.150GHz~5.850GHz *Subject to local regulations | |
MODULATIONS | |
802.11b | DSSS (DBPSK, DQPSK, CCK) |
802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
802.11ax | OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) |
POWER & SENSITIVITY | ||
WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
11b @11Mbps | 17.5dBm | ≤ -88dBm |
11g @ 54Mbps | 12dBm | ≤ -77dBm |
11gn HT20 @ MCS 7 | 12dBm | ≤ -75dBm |
11a @ 54Mbps | 14.5dBm | ≤ -76dBm |
11an HT20 @ MCS 7 | 13.5dBm | ≤ -74dBm |
11an HT40 @ MCS 7 | 11dBm | ≤ -70dBm |
11ac VHT80 @ MCS 9 | 9dBm | ≤ -57dBm |
11ax HE20 @ HE 7 | 13.5dBm | ≤ -69dBm |
11ax HE40 @ HE 7 | 11dBm | ≤ -68dBm |
11ax HE80 @ HE 9 | 9dBm | ≤ -60dBm |
POWER CONSUMPTION | |
Continue TX | 712mA |
Continue RX | 89mA |
ENVIRONMENTAL | ||
Operating Voltage | DC 3.3V | |
Temperature Range | -40~ 85°C (Operating) | -40 ~ 105°C (Storing) |
Humidity(Non-Condensing) | 10 ~ 95% (Operating) | 5 ~ 95% (Storing) |
SIZE | |

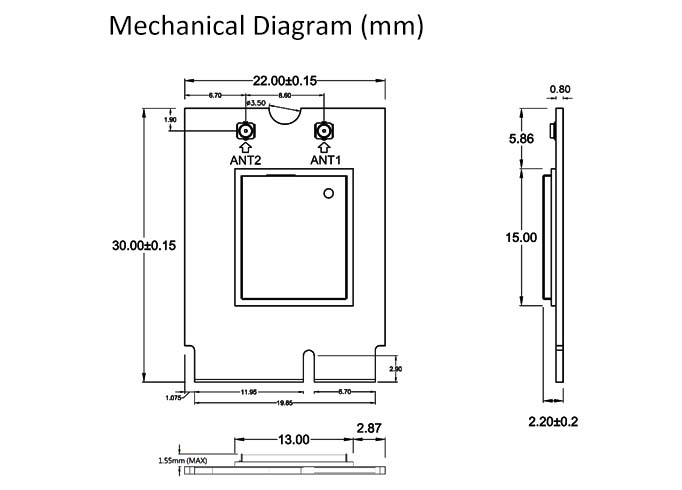

Dimension (MM) | 30mm(±0.15mm) x 22mm(±0.15mm) x 2.2mm(±0.2mm) |
Weight | ≦3.5g |
SOFTWARE | |
Driver | Linux |
Android | |
Security | 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x |
Miscellaneous | |
Warranty Period | 12 Month |
HS Code | 8517620050 |
认证
 |  |  | |
USA | EU Region | Japan | Canada |
环境合规
 |  | ||
ROHS | REACH |
