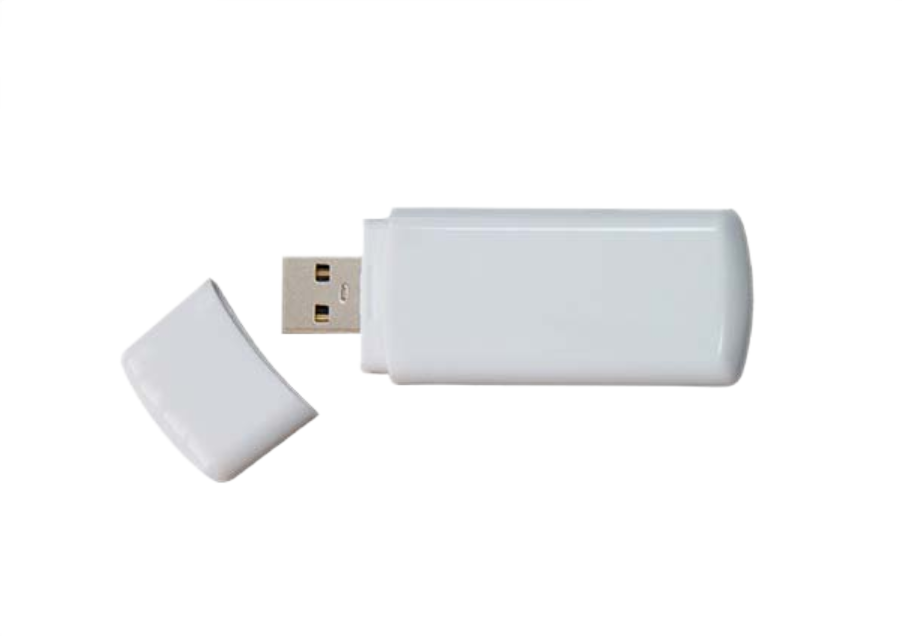

WUBT-239ACN(BT)适配器
产品概述
SparkLAN WUBT-239ACN(BT) 是一款高度集成的单芯片无线局域网 (WLAN)、BT USB 模块，支持 MIMO无线局域网 (WLAN) 的 2 流 802.11ac 解决方案。它在单芯片 USB 模块中集成了 2Tx2R WLAN MAC、基带和双频射频。WUBT-239ACN(BT) 通过一个 USB 端口为 M2M连接产品/设备提供了一种经济高效的解决方案。
WUBT-239ACN(BT) 802.11ac/abgn 2Tx2R USB WLAN/BT Combo适配器，适用于高性能无线 LAN 和 BT 设备。它旨在以低功耗提供完整的 M2M 连接和出色的性价比，并增强稳健系统和应用程序的优势。
适用应用
应用包括便携式手持设备、客户端计算机、医疗设备、网络安全和监控、3D打印机、电视、机顶盒、POS、数字标牌、游戏机、机器人机械、工业平板电脑等。
参数特性
STANDARD | |
WI-FI | IEEE 802.11ac/a/b/g/n |
Chipset | Realtek RTL8822CU |
Host Interface | WLAN : USB |
RADIO | |
Antenna | 2 x IPEX 印刷天线用于2T2R（ANT0仅用于WIFI，ANT1用于WIFI+BT） |
Operating Frequency | 802.11ac/a/b/g/n ISM Band |
2.412GHz~2.484GHz 5.150GHz~5.850GHz *Subject to local regulations | |
MODULATIONS | |
802.11b | DSSS (DBPSK, DQPSK, CCK) |
802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY | ||
WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
11b @11Mbps | 17dBm | ≤ -76dBm |
11g @ 54Mbps | 16dBm | ≤ -65dBm |
11gn HT20 @ MCS 7 | 15dBm | ≤ -64dBm |
11gn HT40 @ MCS 7 | 15dBm | ≤ -61dBm |
11a @ 54Mbps | 15dBm | ≤ -70dBm |
11an HT20 @ MCS 7 | 14dBm | ≤ -60dBm |
11an HT40 @ MCS 7 | 14dBm | ≤ -60dBm |
11ac VHT80 @ MCS 9 | 11dBm | ≤ -51dBm |
POWER CONSUMPTION | |
Continue TX | 600mA |
Continue RX | 350mA |
ENVIRONMENTAL | ||
Operating Voltage | DC 5V | |
Temperature Range | -20~ +70°C (Operating) | -40 ~ +85°C (Storing) |
Humidity(Non-Condensing) | 5~ 95% (Operating) | 5 ~ 90% (Storing) |
SIZE | |
Dimension (MM) | 76.9mm(±0.5mm) x 26.1mm(±0.5mm) x 10.7mm(±0.5mm) |
Weight | 13.73g |
SOFTWARE | |
Driver | Windows |
Linux | |
Android | |
Security | 64/128-bits WEP, WPA, WPA2,WPA3,802.1x |
Miscellaneous | |
Warranty Period | 12 Month |
HS Code | 8517620050 |
认证
 |  |  |  |
USA | EU Region | Japan | Canada |
环境合规
|
| ||
ROHS | REACH |
