WPEQ-450AC
产品概述

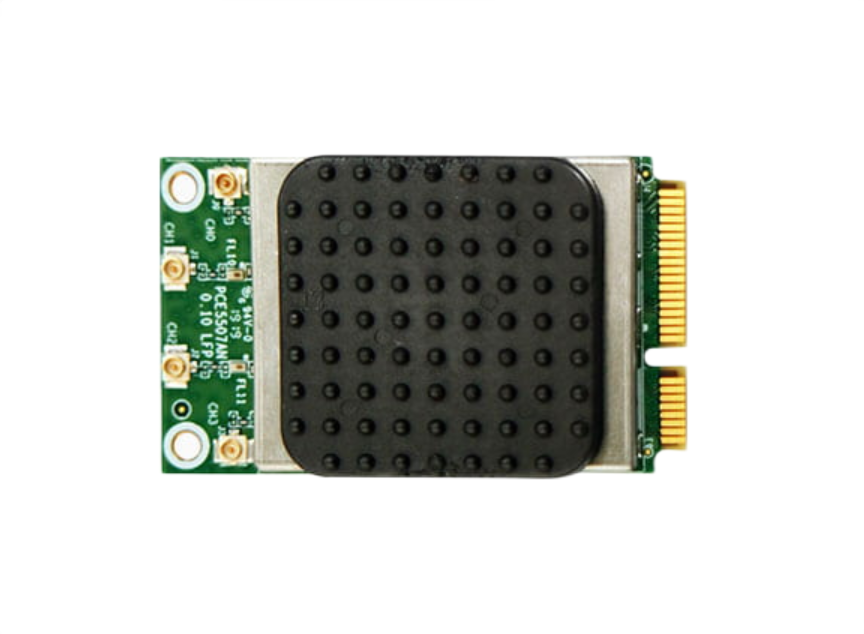

SparkLAN WPEQ-450AC 是一款高度集成的无线 LAN (WLAN)、WiFi 5 802.11ac 4×4 (4T4R) Mini-PCIE 模块，支持具有多用户 MIMO（多输入多输出）无线的 4 流 802.11ac局域网（WLAN）。它在单芯片 Mini-PCIe 模块中集成了 4×4 (4T4R) WLAN MAC、基带和单频射频。WPEQ-450AC 通过 Mini-PCIe 为 M2M（机器对机器）连接产品/设备提供了具有成本效益的解决方案，它可以轻松集成到最熟悉的操作系统（Linux）中。
WPEQ-450AC 是一款 Wave2 11ac 无线电，可帮助优质 WiFi 路由器、网关、机顶盒和范围扩展器支持联网家庭中的更多设备和要求更高的应用。支持80+80MHz频道，近距离容量翻倍.
适用应用
● 工业电脑
● 车载路由器
● 车载前排
● 机器人
● 车载电脑
● 户外IPTV
● 后终端无人机
● 智能网关
参数特性
STANDARD | |
WI-FI | IEEE 802.11ac/a/n |
Chipset | ·Qualcomm Atheros QCA9984 |
Host Interface | WLAN : PCIe |
RADIO | |
Antenna | 4 x IPEX MHF1 connectors |
Operating Frequency | 802.11ac/a/n ISM Band |
5.150GHz~5.850GHz *Subject to local regulations | |
MODULATIONS | |
802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY | ||
WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
11a @ 54Mbps | 17dBm | ≤ -72dBm |
11an HT20 @ MCS 7 | 16dBm | ≤ -68dBm |
11an HT40 @ MCS 7 | 15dBm | ≤ -66dBm |
11ac VHT80 @ MCS 9 | 15dBm | ≤ -56dBm |
11ac VHT80+80 @ MCS 9 | 14dBm | ≤-56dBm |
POWER CONSUMPTION | |
Continue TX | 2250mA |
Continue RX | 750mA |
ENVIRONMENTAL | ||
Operating Voltage | DC 3.3V | |
Temperature Range | -20~ 70°C (Operating) | -20 ~ 90°C (Storing) |
Humidity(Non-Condensing) | 5~ 90% (Operating) | 5 ~ 90% (Storing) |
SIZE | |
Dimension (MM) | 50.80mm(±0.3mm) x 29.85mm(±0.3mm) x 7.8mm(±0.3mm) |
Weight | 12.6g |
SOFTWARE | |
Driver | Linux |
Security | 64/128-bits WEP, WPA, WPA2,WPA3,802.1x |
Miscellaneous | |
Warranty Period | 12 Month |
HS Code | 8517620050 |
认证
 | |  |  |
USA | EU Region | Japan | Canada |
环境合规
 |  | ||
ROHS | REACH |
