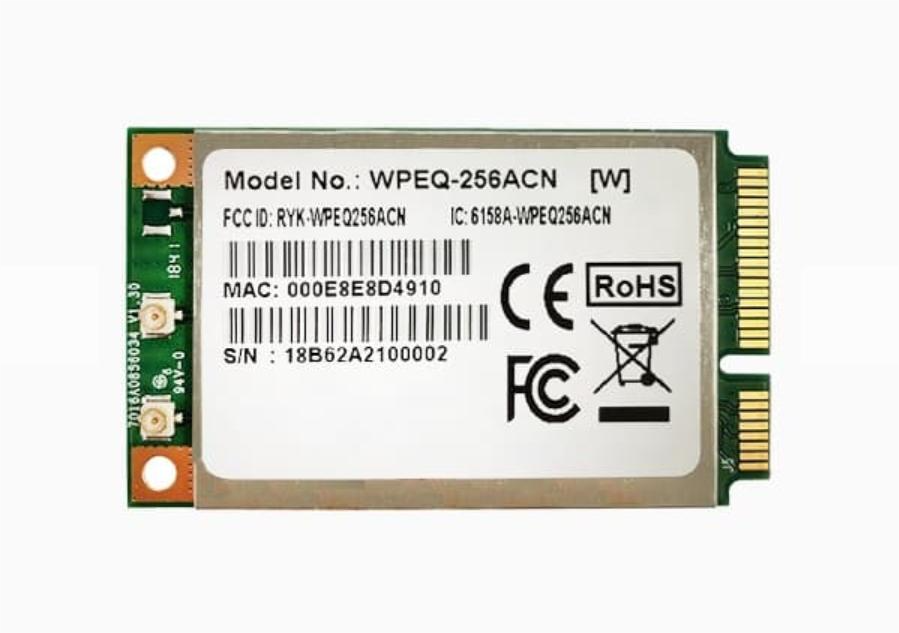

WPEQ-256ACN
产品概述
WPEQ-256ACN 由 Qualcomm Atheros QCA9882 无线电芯片提供支持，并采用 2×2 WiFi 5 技术，可实现更高的吞吐量性能、可靠性和范围。它旨在满足关键嵌入式应用程序的苛刻性能要求。
WPEQ-256ACN 将整体吞吐量大幅提升至 867Mbps。利用革命性的 WiFi 5 技术，WPEQ-256ACN 在吞吐量和范围方面树立了新的标杆，使其成为消费者和企业应用的理想选择，例如销售点、游戏机和医疗设备。
适用应用
● 工业电脑
● 车载路由器
● 车载前排
● 机器人
● 车载电脑
● 户外IPTV
● 后终端无人机
● 智能网关
参数特性
STANDARD | |
WI-FI | IEEE 802.11ac/a/b/g/n |
Chipset | ·Qualcomm Atheros QCA9882-BR4A |
Host Interface | WLAN : PCIe |
RADIO | |
Antenna | 2 x IPEX MHF1 connectors |
Operating Frequency | 802.11ac/a/b/g/n ISM Band |
2.412GHz~2.484GHz 5.150GHz~5.850GHz *Subject to local regulations | |
MODULATIONS | |
802.11b | DSSS (DBPSK, DQPSK, CCK) |
802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY | ||
WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
11b @11Mbps | 20dBm | ≤ -87dBm |
11g @ 54Mbps | 16dBm | ≤ -74dBm |
11gn HT20 @ MCS 7 | 15dBm | ≤ -70dBm |
11gn HT40 @ MCS 7 | 15dBm | ≤ -68dBm |
11a @ 54Mbps | 14dBm | ≤ -74dBm |
11an HT20 @ MCS 7 | 13dBm | ≤ -71dBm |
11an HT40 @ MCS 7 | 13dBm | ≤ -68dBm |
11ac HT80 @ MCS 9 | 10dBm | ≤ -59dBm |
POWER CONSUMPTION | |
Continue TX | 1050mA |
Continue RX | 480mA |
ENVIRONMENTAL | ||
Operating Voltage | DC 3.3V | |
Temperature Range | -20~ 60°C (Operating) | -30 ~ 75°C (Storing) |
Humidity(Non-Condensing) | 10~ 85% (Operating) | 5 ~ 90% (Storing) |
SIZE | |

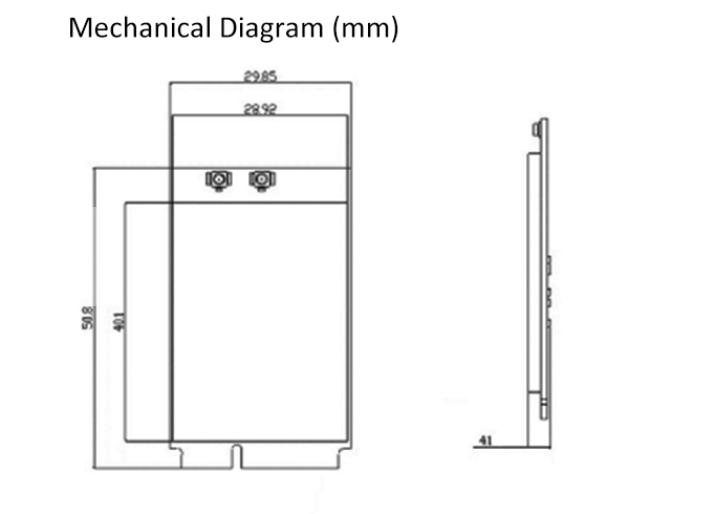

Dimension (MM) | 50.8mm(±0.3mm) x 29.85mm(±0.3mm) x 4.1mm(±0.3mm) |
Weight | 7.8g |
SOFTWARE | |
Driver | Linux |
Security | 64/128-bits WEP, WPA, WPA2,802.1x |
Miscellaneous | |
Warranty Period | 12 Month |
HS Code | 8517620050 |
认证
 |  |  |  |
USA | EU Region | Japan | Canada |
环境合规
 |  | ||
ROHS | REACH |
