WNFQ-262ACNI(BT)
产品概述

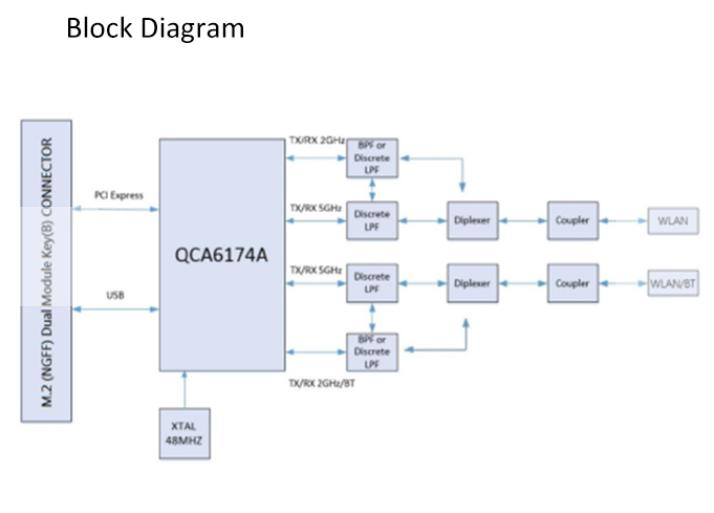

WNFQ-262ACNI(BT) 是一款 QCA6174A B-Key 工业模块，支持采用 Qualcomm Atheros 芯片组的 802.11ac/a/b/g/n 双频 Wi-Fi Combo M.2 2242 外形尺寸。这个高度集成的模块支持大多数 WLAN 功能，具有无缝漫游和企业应用的高级安全性。无线模块符合IEEE 802.11ac/a/b/g/n 2×2 (2T2R) MIMO。集成模块为Wi-Fi提供PCIE接口，为BT提供USB接口。N网下载速度为300Mbps，AC网下载速度为867Mbps。
采用最新的 802.11ac 解决方案。WNFQ-262ACNI(BT)，QCA6174A B-Key工业模块是下一代高吞吐量企业网络和工业级（-40°C~+85°C）解决方案的理想选择。结合先进的安全加密技术，如 WEP、WPA、WPA2、WPA3 和 802.1x，有助于防止用户设备受到恶意攻击。
适用应用
● 工业电脑
● 车载路由器
● 车载前排
● 机器人
● 车载电脑
● 户外IPTV
● 后终端无人机
● 智能网关
参数特性
STANDARD | |
WI-FI | IEEE 802.11ac/a/b/g/n |
Chipset | Qualcomm Atheros QCA6174A-5 |
Host Interface | WLAN : PCIe |
RADIO | |

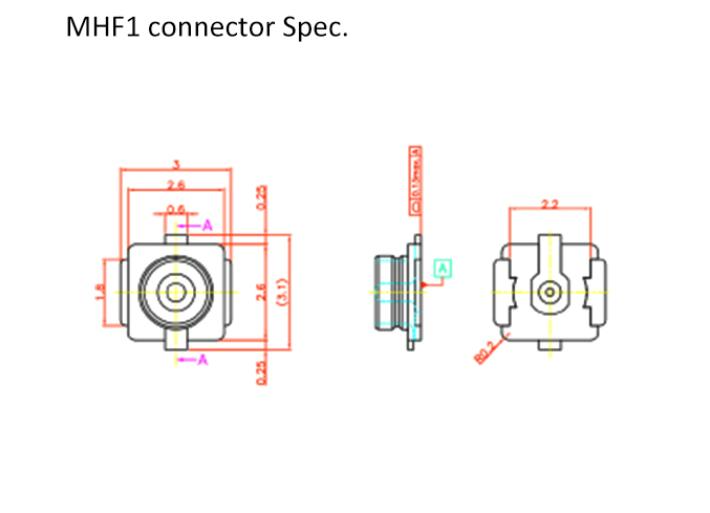

Antenna | 2 x IPEX MHF1 connectors |
Operating Frequency | 802.11ac/a/b/g/n ISM Band |
2.412GHz~2.484GHz 5.150GHz~5.850GHz *Subject to local regulations | |
MODULATIONS | |
802.11b | DSSS (DBPSK, DQPSK, CCK) |
802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY | ||
WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
11b @11Mbps | 18dBm | ≤ -85dBm |
11g @ 54Mbps | 14.5dBm | ≤ -71dBm |
11gn HT20 @ MCS 7 | 14dBm | ≤ -67dBm |
11gn HT40 @ MCS 7 | 13.5dBm | ≤ -65dBm |
11a @ 54Mbps | 14dBm | ≤ -75dBm |
11an HT20 @ MCS 7 | 13dBm | ≤ -71dBm |
11an HT40 @ MCS 7 | 13dBm | ≤ -67dBm |
11ac VHT80 @ MCS 9 | 11dBm | ≤ -57dBm |
POWER CONSUMPTION | |
Continue TX | 610mA |
Continue RX | 298mA |
ENVIRONMENTAL | ||
Operating Voltage | DC 3.3V | |
Temperature Range | -40~ 85°C (Operating) | -45 ~ 90°C (Storing) |
Humidity(Non-Condensing) | 5 ~ 90% (Operating) | 5 ~ 90% (Storing) |
SIZE | |

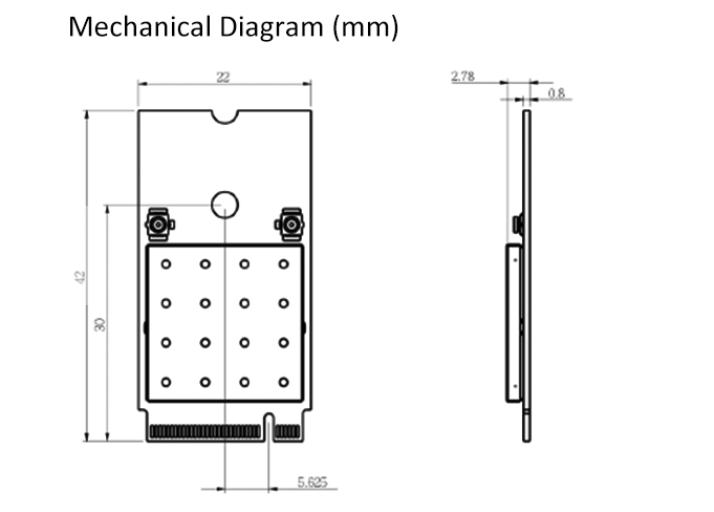

Dimension (MM) | 42mm(±0.3mm) x 22mm(±0.3mm) x 2.78mm(±0.3mm) |
Weight | 3.8g |
SOFTWARE | |
Driver | Windows 7/8.1/10 |
Linux (Open Source), Recommend Kernel v4.0+ | |
Security | 64/128-bits WEP, WPA, WPA2, WPA3, ,802.1x |
Miscellaneous | |
Warranty Period | 12 Month |
HS Code | 8517620050 |
认证
 |  |  |  |
USA | EU Region | Japan | Canada |
环境合规
 |  | ||
ROHS | REACH |
